Ceres-200N Networked Media Player

20” TFT LCD Networked Digital Signage

Download the spec. sheet.



Features

Support HD display 1280 x 1024
SignageNow broadcast media control (over 300 locations)
SignageNow content schedule control
Playlist logs available
Multi-zone display (7 max.)
User defined template available
Web interface no software installation needed

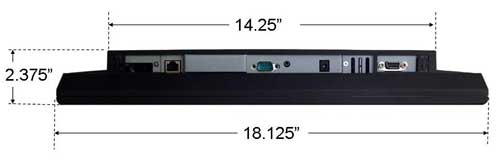

Additional Images:



Specifications




General







Screen Type:

  - 20.1 TFT LCD


Screen Resolution:

  - 1280 x 1024


Brightness:

  - 300 cd/ m2


Contrast Ratio:

  - 1:700


Video Decoding:

  - MPEG-1
- MPEG-2 MP@(720p/1080i)
- MPEG-4 ASP@L5(720p)
- Windows Media Video(WMV9) Main Profile / Medium Level (720p)


Audio Decoding:

  - Dolby Digital
- MPEG-1 and MPEG-2 LI, II, III(MP3)
- Windows Media Audio 9(WMA9)


Display:

  - VGA 1280 x 1024


Audio Output:

- Stereo (L/R) audio output (Earphone)


Storage:

  - 1GB CF


Ethernet:

  -10/100 Mb


Wireless:

  - 802.11 b/g
- 64/128-bit WEP Encryption
- Detachable antenna


Console:

  - RS-232
