Ceres-171R 17" Dynamic POP Signs with 5W Speaker

中文/English

Ceres-171R 17" Dynamic POP Signs with 5W Speaker

In-store POP IR Activate Audio Marketing Display

Features

- Auto On/OFF smart timer feature
- Ultimate weapon for in-store product promotion
- Attention grabber with IR trigger controlled audio

Specification

Software
Support Media		VCD, DVD, JPEG
Video Specification		- MPEG-1 [.mpg], MPEG-2 [.mpg, .vob] - MPEG-4 ASP @ full screen D1 [.mp4, .avi] - MPEG-2,4 playability is dependant on memory card bandwidth
Photo Specification		- JPEG 5120x3840(max.) scaled to 640 x 480
Media Card		CF, SD
Playback Mode		Auto root file loop playing when power is turn on folder 1..9 interactive playback
Timer Schedule		Daily schedule on/off control (up to 4 shifts)
Hardware
CPU		Digital Media Process II
Display Resolution		VGA 640x480 (17” TFT LCD Panel resolution 1280 x 1024)
Brightness		400nit
Lamp Life Time		40000hr (Brightness of lamp becomes 50% of the initial brightness)
Connector		Ext. Jack Audio R/L CF, SD (Key locked cover)
Sensor		IR sensor Rang 10f – 20f, 3sec, 30sec, 3min, 5min trigger setting
Speakers		5W x 2
Chassis Materials		Metal, Temp glass for screen protection , Mounting VESA 100 x 100
Remote Control		Setup, Folder select, Volume control ..etc.
Power input		AC/DC Adapter ,Output +12VDC, 4A
Dimension		15" x 13.85" x 1.92"

Ordering Information

Ceres-171R

17" Dynamic POP Signs with 5W Speaker

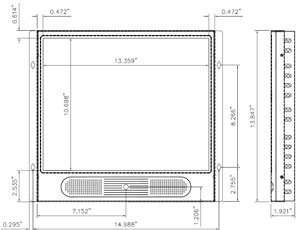

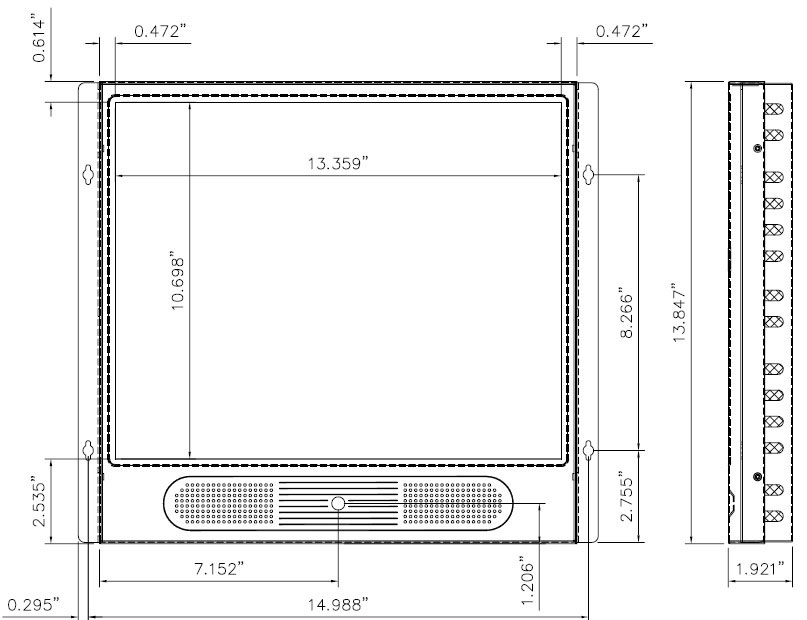

Click on image to enlarge.
