- Economic substitution for expensive light boxes.
- Store Welcoming and Marketing Sign
- Custom frames matching your store image
- Wall-mount metal bezel or panel-mount open frame available
- Auto On/OFF smart timer feature
Product Application
Specification
Software
Support Media
VCD, DVD, JPEG
Video Specification
- MPEG-1 [.mpg], MPEG-2 [.mpg, .vob]
- MPEG-4 ASP @ full screen D1 [.mp4, .avi]
- MPEG-2,4 playability is dependant on memory card bandwidth
Photo Specification
- JPEG 5120x3840(max.) scaled to 640 x 480
Media Card
CF, SD
Playback Mode
Auto root file loop playing when power is turn on
folder 1..9 interactive playback
Timer Schedule
Daily schedule on/off control, up to 4 shifts
Hardware
CPU
Digital Media Process II
Display Resolution
VGA 640x480 (20” TFT LCD Panel resolution 1400 x 105)
Brightness
400nit
Lamp Life Time
40000hr (Brightness of lamp becomes 50% of the initial brightness)
Keypad
1 – 8 (max)keys, Capacitive type keypad with LED indicator
Connector
Ext. Jack Audio R/L
CF, SD (Key locked cover)
Speakers
5W x 2
Chassis Material
200– Plastic, 201 - Metal, Mounting VESA 100 x 100
Remote Control
Setup, Folder select, Volume control ..etc.
Power input
AC/DC Adapter ,Output +12VDC, 4A

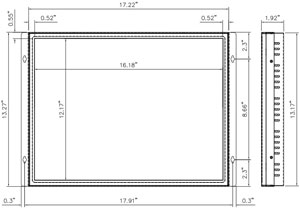

Dimension
17.22" x 13.27" x 1.92"
Ordering Information
Ceres-201
20" Digital Poster
Click on image to enlarge.
Click on image to enlarge.
