MS-1000 Networked Sign Server |
SignageNow Local Server is perfect for regional venues, such as regional retail locations restaurants, banks, and movie theaters... |
|
 |
| |
Features |
|
|
| |
‧Domain name access (ex. yourname.sign123.net)
‧Playlist scheduling, including looping durations or specific time zone
‧Multiple zone template no need pre-rendering
‧Instant message input
‧Scalable from individual use to large-scale digital signage network
‧Multi-user support
‧Web access no software installation needed
‧Embedded OS |
|
|
Additional Images: |
|
|
|
|
|
| |
|
|
Network Connections
|
|
|

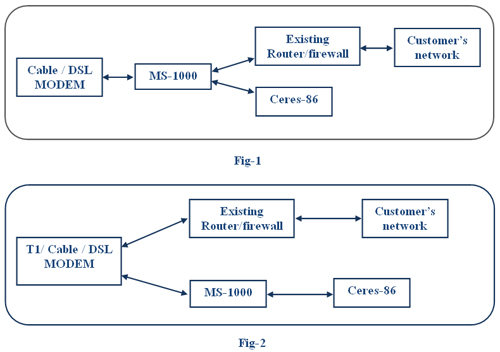

| MS-1000 has integrated router and server together into one package. Clients are now able to share application resources within your networks without modifying original network settings. It can also support various types of application networks. There are two connection types 1. Dynamic IP (fig.1) and 2. Fixed IP (fig. 2). |
| |
|
|
(Fig-2: MS-1000 and the existing router/firewall has differnt IP)
|
| |
|
|
Specifications |
|
|
| |
|
|
General |
WAN: |
|
Support Static IP, PPPoE and DHCP Client |
LAN: |
|
Support DHCP Server for managing player IP address |
Support Dynamic DNS: |
|
Support Internet access with no fixed WAN IP |
Ports: |
|
1 x WAN, 4 x LAN port (10/100 Mbps) |
Storage: |
|
1 x 250 GB SATA HDD |
Maximum Player Connections: |
|
20 |
Logs: |
|
30-Day player logs report |
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
