Ceres-171NW 17" Networked Digital POP Sign

Centralized In-store POP Signs for Chain-stores

Download the spec. sheet.

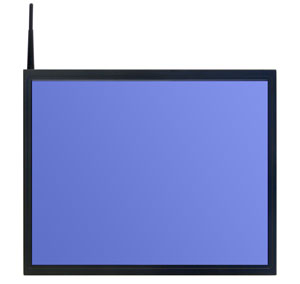

Ceres-171NW 17" Networked Digital POP Sign

Features

- Dynamic product promotional device
- Centralized content control and scheduling
- Lightweight & space-saving compact size
- Wall-mount metal bezel or panel-mount open frame available
- Scratch-free & Anti-glare temp-glass screen protector

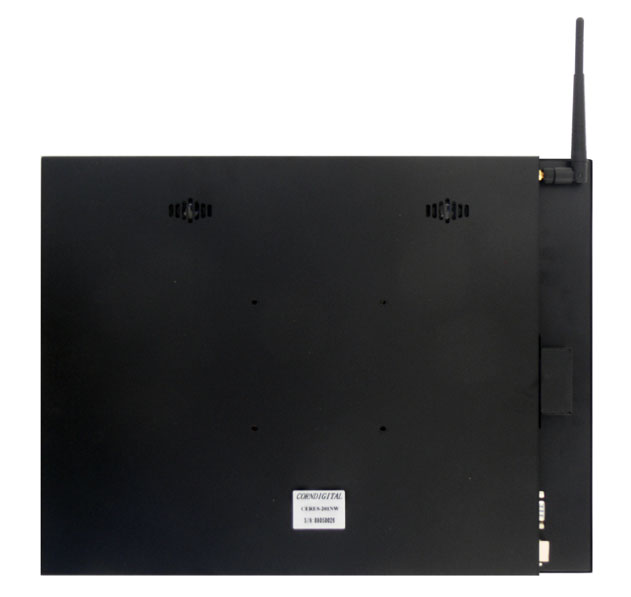

Ceres-171NW 17" Networked Digital POP Sign Back View

Specification

Software
OS		Embedded Linux
Support Media		HD, DVD-Video, WMV9, JPEG
Video Specification		- MPEG-1 [.mpg], MPEG-2 MP@(720p/1080i)[.mpg, .vob] - MPEG-4 ASP @ L5 (720p)[.mp4, .avi] - Windows Media Video 9 MP/ML (720p)(.wmv)
Photo Specification		- JPEG
Playback Mode		Local stored media & playlist playback
Connecting Server		SignageNow Server Web application no software installation needed Upload content, Design template, Setup playlist & schedule
Internet Protocol		HTTP protocol ; where PC can surf the website
IP Address		DHCP client or fixed IP
Initial Setup		RS-232 console (Hyper-terminal ;38400,8, n, 1)
Hardware
CPU		RISC 166MHz
Memory		DDR400 64MB
Flash		8MB
Mixer		1024x768 (4:3); 1120x630 (16:9)
Storage		1GB CF card (2/4GB option)
Display Resolution		VGA 1280x1024 (17” TFT LCD Panel resolution 1280 x 1024)
Brightness		400 nits
Lamp Life Time		40000 hrs (Brightness of lamp becomes 50% of the initial brightness)
Wireless (optional)		802.11 b/g , 64/128-bit WEP Encryption, Detachable antenna
Network		10/100Mb Ethernet (RJ45)
Connector		Ethernet (RJ45), RS-232 (console), Audio R/L
Speakers		2W x 2
Chassis Material		Metal with Temp-glass for screen protection
Power Input		AC/DC Adapter,Output +12VDC 5A

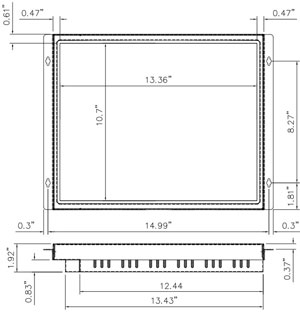

Dimension		14.99" x 11.89" x 1.92"

Ordering Information

Ceres-171NW

17" Networked Digital POP Sign
