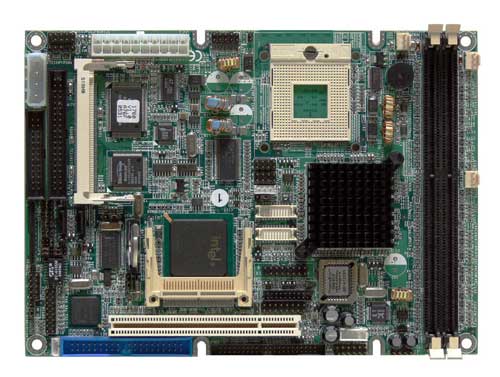

CD-4985 |
Socket 479 for Pentium/Celeron M, 855GME, ICH LANx1 + 82541GI GbE LANx1, GMCH VGA, DVI, SATA |
 |
|
|
Feature |
| |
 |
Supports Pentium ® M / Celeron ® M processors |
|
Up to 2.0GHz, 400MHz FSB |
|
DDR DIMM x 2, max. 2GB |
|
Integrated VGA, shared memory, CRT/LVDS/DVI |
|
Integrated 10/100 BaseT and Intel ® Gigabit LAN |
|
Watchdog timer, Digital I/O |
|
Type 2 CF socket, Mini PCI slot |

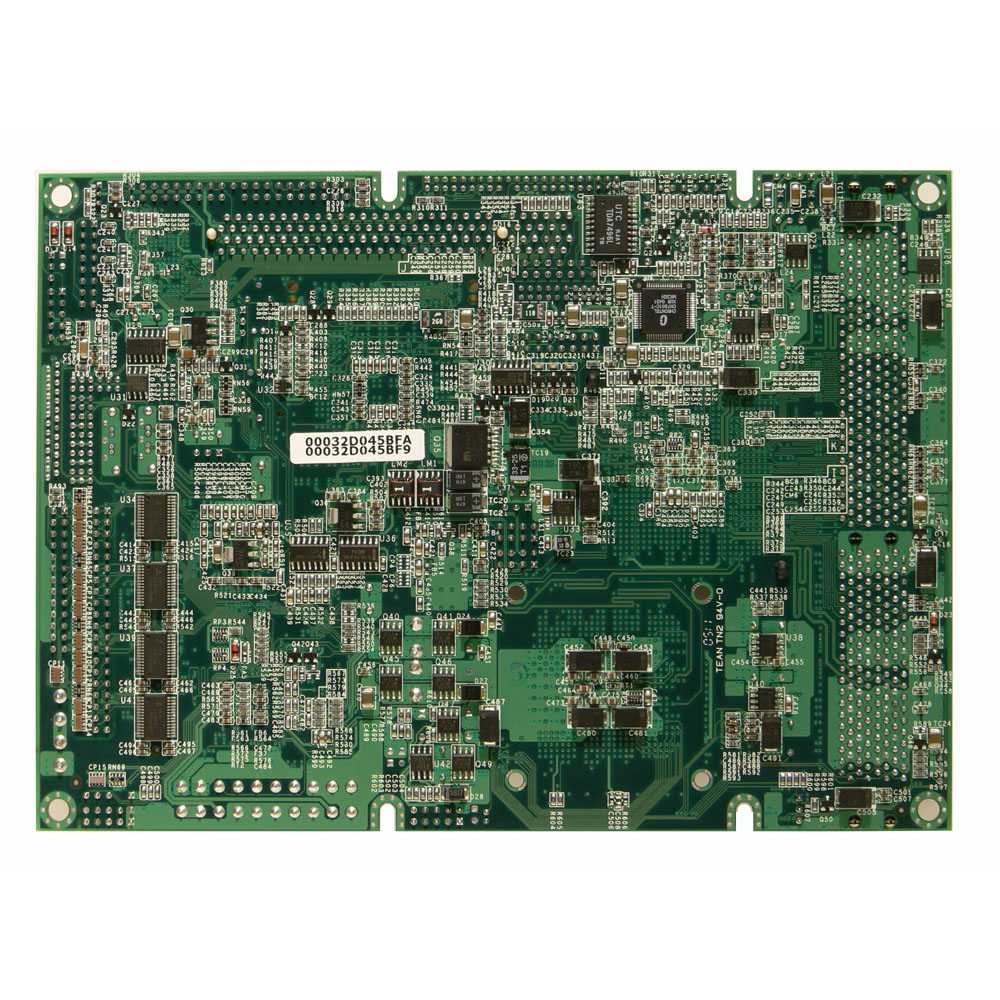

Additional Images: |
|
PCI slot, 2 x SATA, 4 x USB, 4 x serial |
|
|
|
Specifications |
|
|
| |
|
|
General |
| |
|
|
CPU: |
|
Intel® Pentium® M processor |
| |
|
|
CPU Voltage: |
|
0.700V~1.708V |
| |
|
|
System Speed: |
|
Up to 2.0GHz |
| |
|
|
CPU External Clock: |
|
400MHz |
| |
|
|
Green /APM: |
|
APM1.2 |
| |
|
|
Chipset: |
|
Intel ® 82855GME chipset
GMCH: 82855GME, 732-pin Micro-FCBGA
ICH4: 82801DB 421-pin BGA |
| |
|
|
BIOS: |
|
Award BIOS; Supports ACPI function |
| |
|
|
Cache: |
|
1M Level 2 cache |
| |
|
|
VGA: |
|
Intel ® 82855GME integrated VGA
Supports CRT & LVDS (24-bit)
TMDS/DVI support |
| |
|
|
LAN: |
|
ICH4 integrated LAN controller (10/100Mb) + optional Intel ® 82541GI Gigabit Ethernet controller (optional) |
| |
|
|
IDE: |
|
Built-in ICH4, IDE1, 2 (Ultra DMA 33/66/100) |
| |
|
|
LPC I/O: |
|
Winbond 83627HF: IrDAx1 Parallel x1, COM1 (RS-232), COM2 (RS-232/ RS422/RS485), FDC 2.88MB (3 Mode Support), Hardware monitoring (3 thermal inputs, 4 voltage monitor inputs, VID0-5, 2 fan headers) |
| |
|
|
Secondary I/O: |
|
ICH4-M built-in |
| |
|
|
Battery: |
|
Built-in lithium battery |
| |
|
|
Keyboard Controller: |
|
Built-in Winbond 83627HF |
| |
|
|
USB: |
|
Pin header, supports 4 ports, USB 2.0 |
| |
|
|
Compact Flash: |
|
Supports Type II CF card socket via IDE2 slave channel |
| |
|
|
Serial ATA (optional): |
|
SiL3512; supports 2 ports |
| |
|
|
Digital I/O: |
|
4 in, 4 out |
| |
|
|
Watchdog Timer: |
|
256 levels |
| |
|
|
Expansion Slots: |
|
1 PCI slot (supports 2 Bus Masters)
1 Mini PCI slot |
| |
|
|
Power Connector: |
|
20-pin ATX type |
| |
|
|
System Voltages: |
|
+5V, +12V, -12V, 5VSB |
| |
|
|
Dimensions: |
|
203mm x 146mm (7.99" x 5.74") |
| |
|
|
Environmental Factors: |
| |
|
|
Operating Temp.: |
|
0~60°C (32~140°F) |
| |
|
|
Storage Temp.: |
|
-20~80°C (-68~176°F) |
| |
|
|
Relative Humidity: |
|
10%~90% (non-condensing) |
| |
|
|
| |
|
|
