Specifications |
|
|
| |
|
|
General |
| |
|
|
CPU: |
|
Intel® Pentium® M / Celeron M 400/500 MHz FSB |
| |
|
|
Chipset: |
|
Intel® 915GM & ICH6M |
| |
|
|
Memory: |
|
2 x DDR2 400/533 MHzSDRAM socket up to 2GB |
| |
|
|
Display: |
|
Intel 915G integrated GMA(Graphic Media Accelerator) 900 Technology. Up to 128MB shared with system memory
Built-in HDTV and 18-bit dual channel LVDS interfaces. |
| |
|
|
IDE: |
|
1 x Ultra ATA/100 IDE channel up to 2 IDE devices. |
| |
|
|
Serial ATA: |
|
2 x Serial ATA Interface with 150MB/s transfer rate. |
| |
|
|
Ethernet: |
|
2 x Marvell 8053 PCI-Express Gigabit LAN. |
| |
|
|
SSD:: |
|
Onboard Compact Flash Type-II socket |
| |
|
|
I/O: |
|

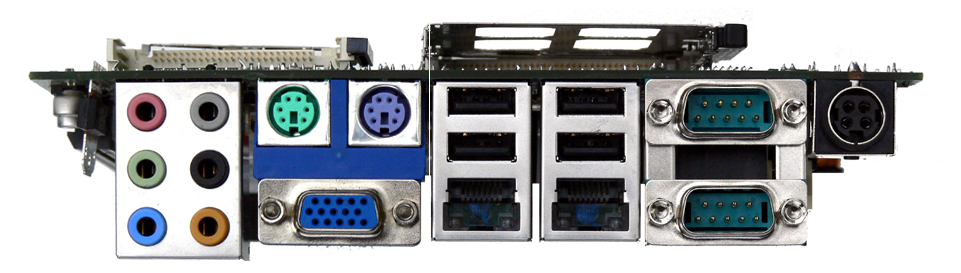

2 x RS232 Serial port, 1 x FDD, 4 x USB 2.0 ports, 1x TV out, 8-bit digital I/O. |
| |
|
|
Audio: |
|
Intel ICH6M integrated with Realtek ALC880 HD Audio |
| |
|
|
Expansion Slot: |
|
1 x Onboard 16x PCI-Express slot (1 x mode compatible)
1 x Min-PCI scoket |
| |
|
|
Power Requirement: |
|
DC 12V |
| |
|
|
| |
|
|
| |
|
|
