Specifications |
|
|
| |
|
|
General |
| |
|
|
CPU: |
|
Intel Socket 478 Pentium 4 Prescott CPU up to 800MHz FSB, Support Intel Hyper-Threading Technology. |
| |
|
|
Chipset: |
|
Intel 82865G & 82801EB. |
| |
|
|
Memory: |
|
Dual channel DDR 333/400 SDRAM socket up to 2GB. |
| |
|
|
Display: |
|
Intel 82865G GMCH built-in 256bit 2D/3D VGA controller, Dynamic vedio memory up to 64MB. |
| |
|
|
IDE: |
|
2 x Ultra ATA/100 IDE channels up to 4r IDE devices. |
| |
|
|
Serial ATA: |
|
2 x Serial ATA interface with 150MB/s transfer rate. |
| |
|
|
Ethernet: |
|
1 x Intel 82547EI Gigabit LAN & 1 x Intel 82562ET 10/100Mb LAN. |
| |
|
|
SSD: |
|
Onboard Compact Flash Type-II socket. |
| |
|
|
I/O: |
|

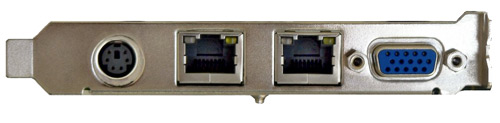

2x RS-232 port, 1 x Parallel port, 1x FDD, 4x USB 2.0, 1 x Mini-AGP port. |
| |
|
|
Audio: |
|
Intel ICH5 integrated with ALC201A AC97 Codec. |
| |
|
|
Watchdog: |
|
256-level generates NMI or system reset programmable watchdog timer. |
| |
|
|
Power Requirement: |
|
+5V & +12V DC input from PICMG slot and ATX12V connector. |
| |
|
|
| |
|
|
