3.5" Intel Ultra Low Valtage Celeron 400Mhz Miniboard with LCD/CRT/TV-out, Audio, LAN and PCMCIA
Feature
Intel Ultra Low Voltage Celeron 400Mhz CPU up to Low Voltage Pentium III 933Mhz FSB100/133Mhz
SDRAM up to 512MB (SO-DIMM)
UMA Savage 4 (VT8606T) AGP Video Controller with TTL, LVDS, CRT & TV-out support
10/100 Mbps Ethernet, RTL8100BL
Support Unique Board ID# (2K EEPROM) for software based
security and IP protection
Dual PCMCIA socket

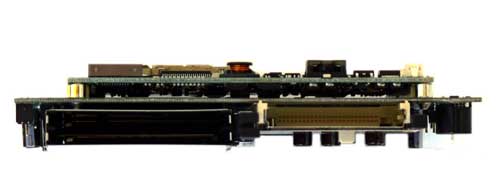

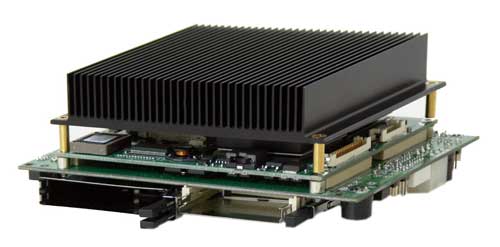

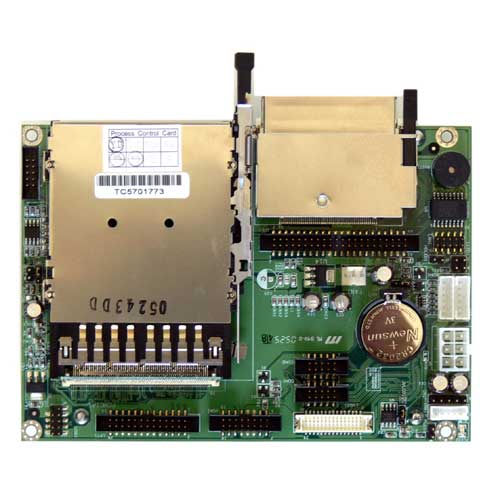

Additional Images:
Specifications
General
System:
CPU : Intel Ultra Low Voltage Celeron 400Mhz up to Low Voltage Pentium III 933Mhz FSB100/133Mhz
Cache : 2nd level 512KByte
Memory : 1 x 144Pin SO-DIMM up to 512MB SDRAM
Chipset : VIA Twister-T VT8606T + VIA VT 82686B
BIOS : Phoenix-AWARD PnP Flash BIOS
ATA/IDE : 1 x Ultra DMA 33, support 2 IDE drives
Flash Disk : 1 x Type II Compact Flash Disk Socket
Watchdog Timer : 127-level Reset
I/O:
Serial Port : 2 x RS-232 ports(COM1/2)
Parallel port : SPP/EPP/ECP mode
IrDA : 1 x SIR IrDA 1.1 compliant
USB port : 4 x USB 1.1 compliant
KB/MS : 1 x PS2 K/B and Mouse
Expansion Bus : 2 x PCMCIA Socket
Ethernet:
Chipset : Realtek 8100BL 10/100base-T Built-in Boot ROM in Flash BIOS, support Boot from LAN
Audio:
Codec / Interface : VIA VT1612A AC97 Codec, support Mic-in/Line-in/Line-out
Display:
Graphics Chipset : VIA Twister-T S3 Savage4 Engine up to 32MByte UMA video RAM
Graphics Interface :
CRT support up to 1920 x 1440
LCD support 18/36 bit LVDS up to 1280 x 1024
LCD support TTL 18/24/36 bit TTL up to 1280 x 1024
TV-Out support NTSC / PAL up to 1024 x 768
Mechanical & Environmenta:
Power Consumption : 5V / 2.18A
Operating Temperature : 0? ~ 60? (32? ~ 140?)
Operating Humidity : 0% ~ 90% relative humidity, non-condensing system
Dimension (L x W) : 145 x 102 mm (5.7" x 4 ")
Weight : 0.221 kg (0.49 Ib)
